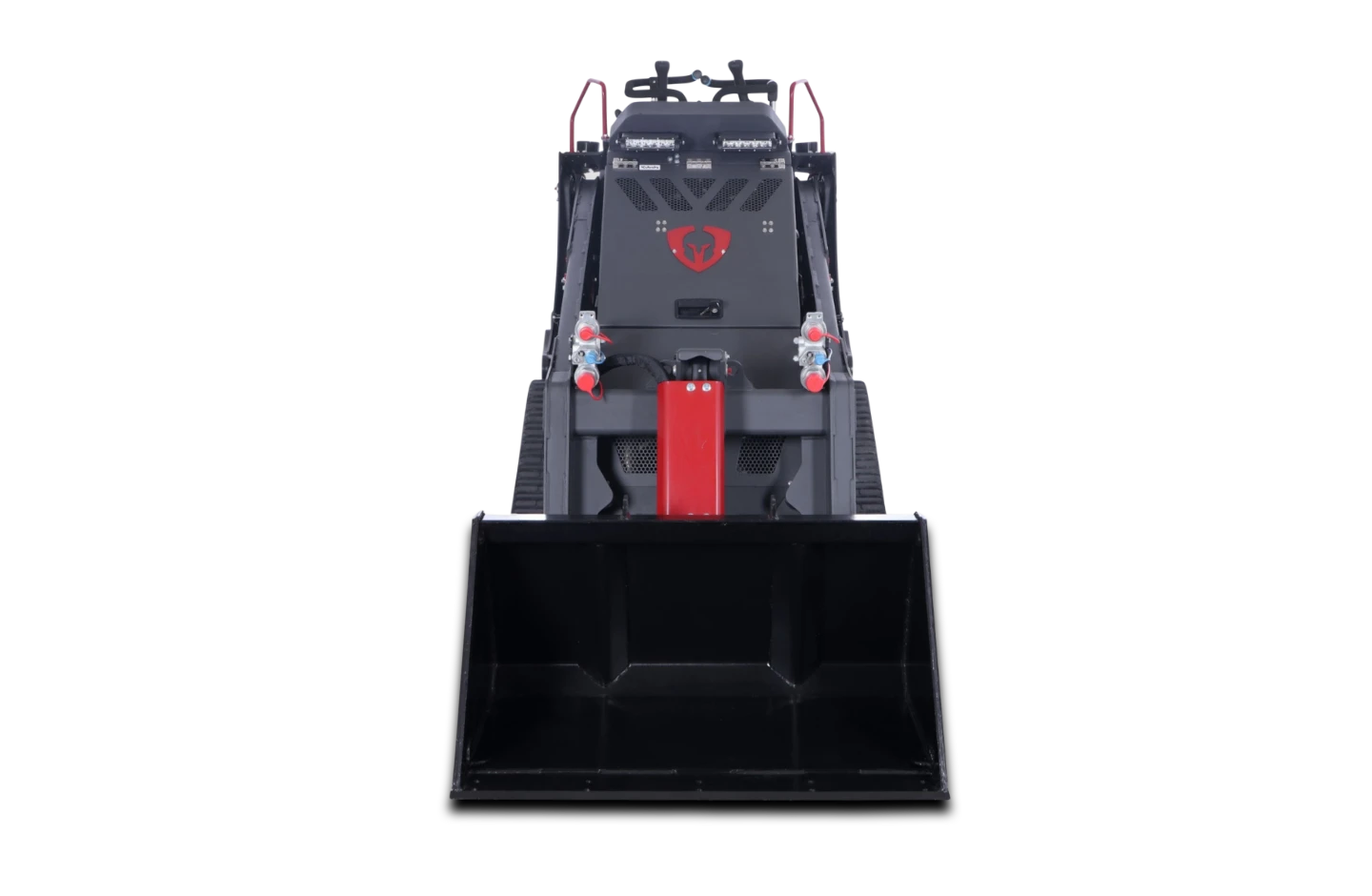

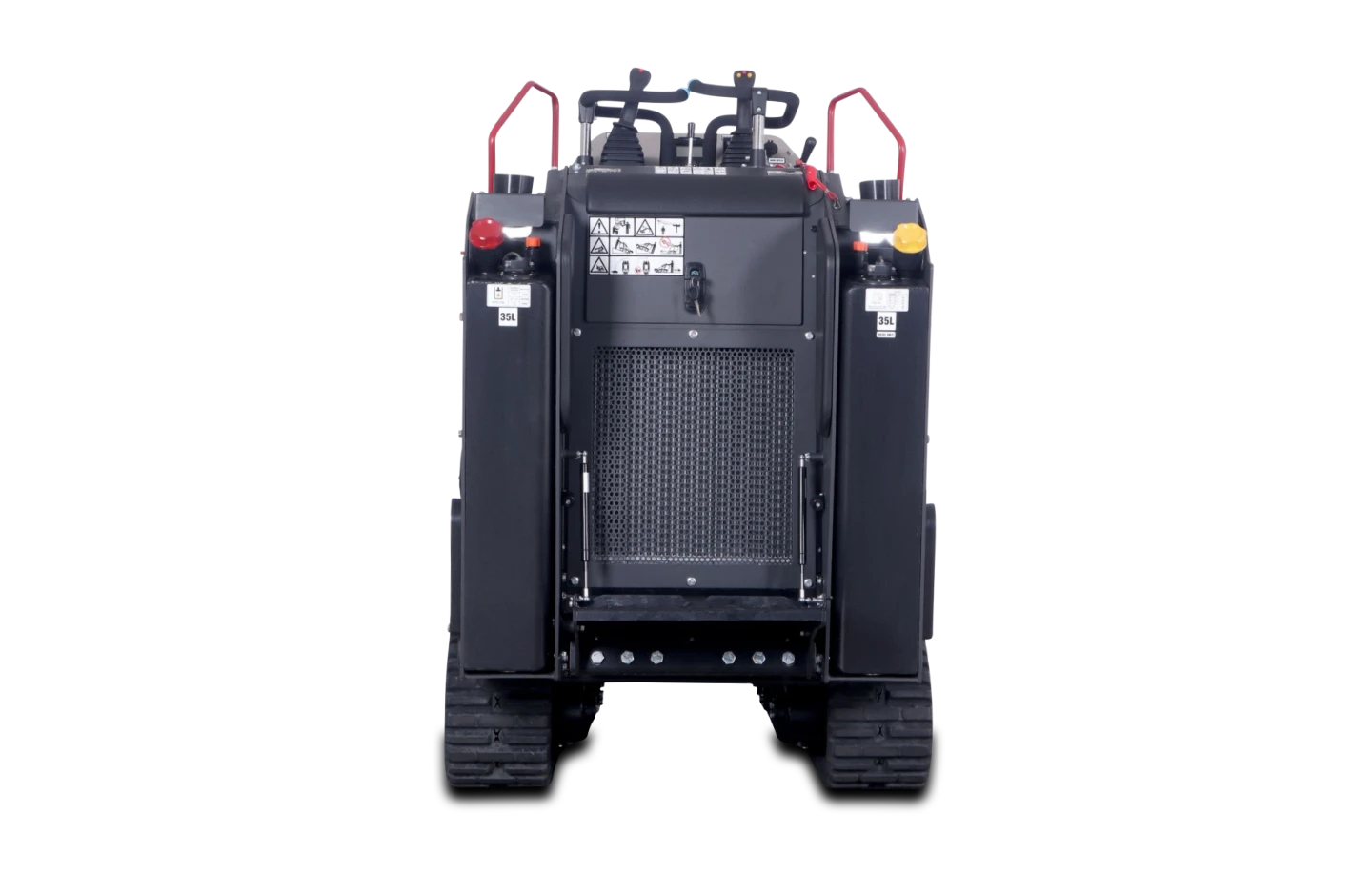

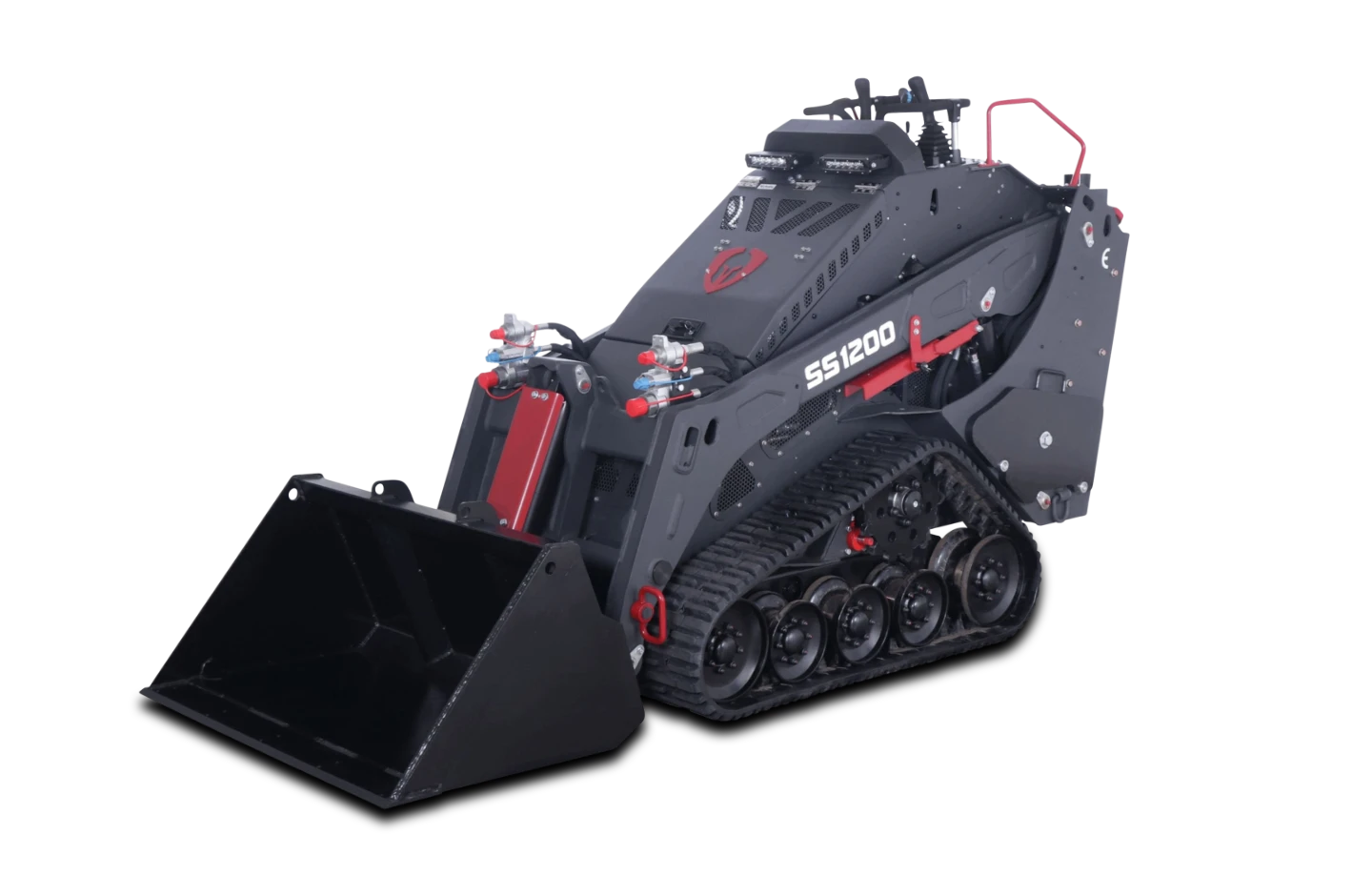

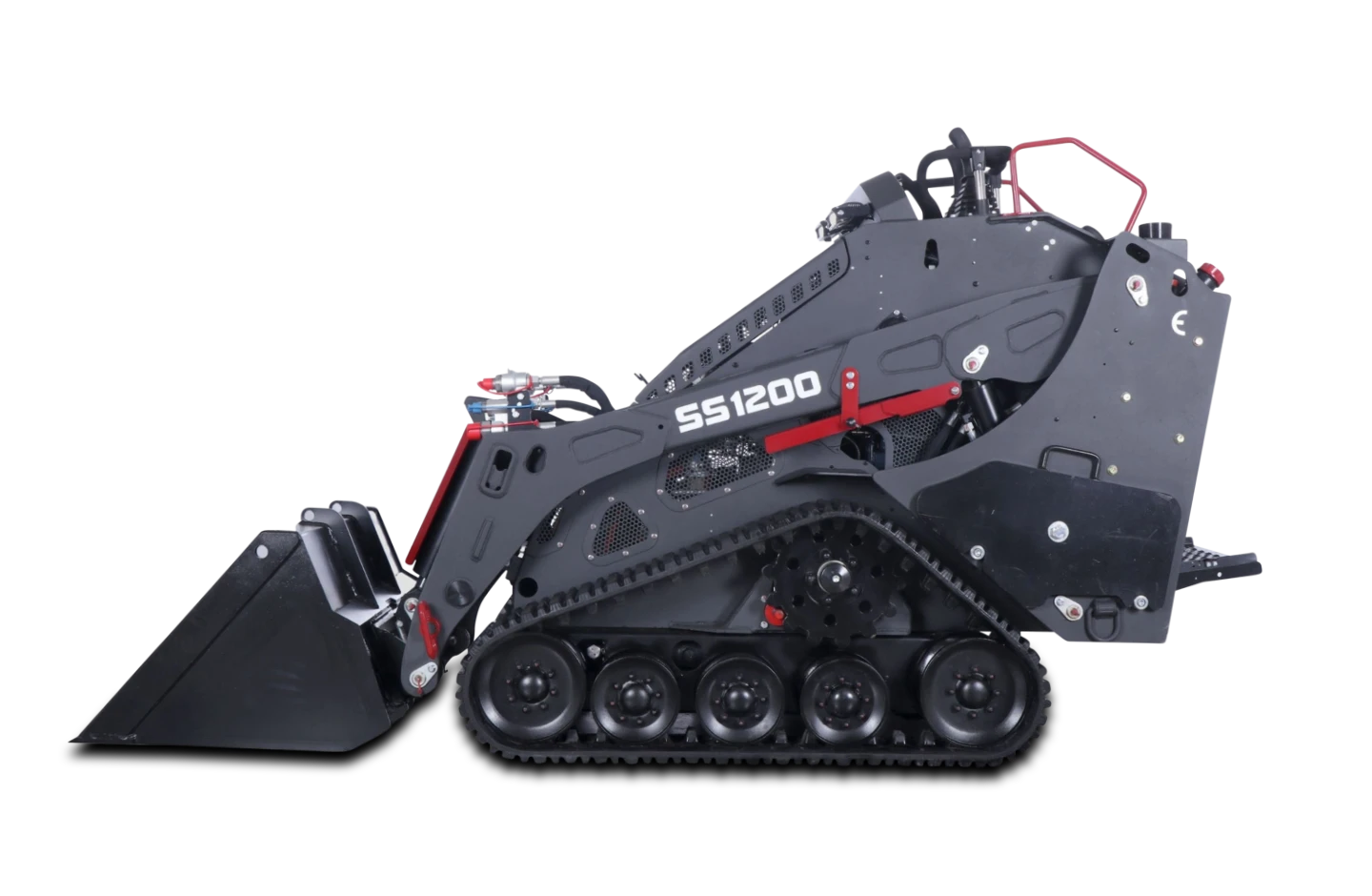

SPARTAN
SS 1200
22 500 € without VAT
27 675 € with VAT
18.5 kW
Engine power
48 L/min
Hydraulic flow
544 kg
Operating capacity
TECHNICAL SPECIFICATIONS
- Standard bucket included (111cm, 0.2m³)
- Bondioli & Pavesi axial piston pumps
- Poclain axial piston motors rated for 15000 hours
- Dual auxiliary connectors
- Parking break
- Counterweights
- Smooth operation joystick controls
- 200 mm multi-bar pattern steel reinforced tracks
- Arm float function
- Secure arm lock
- Quick pressure relief connectors
- Emergency kill switch
- LED lights
- LCD screen
- Secure anchor points
- Multifunction control valve
- Fire extinguisher, cup holder, phone holder, charger
- CII (Common Interface Interface) heavy duty mounting plate
- Wide range of adapter attachments
- Includes toolbox, grease gun, set of spare filters
- 1 year parts and labour warranty
| SS 1200 | |
|---|---|
| Engine model | Kubota D1703 |
| Engine power | 24.8HP (18.5kW) @ 2200 rpm |
| Maximum torque | 97.4 Nm @ 1500 rpm |
| Maximum speed | 8 km/h |
| Machine weight | 1650 kg |
| Operating capacity | 544 kg |
| Maximum lift weight | 1555 kg |
| Dimensions without bucket LxWxH | 2218 x 1067 x 1623 mm |
| Overall length with bucket | 2911 mm |
| Maximum lift height | 2090 mm |
| Maximum lift height at 45° tilt | 1467 mm |
| Hydraulic flow @ pressure | 48 L/min @ 19MPa |
| Track width | 200 mm |
| Fuel tank capacity | 32 L |
TOP QUALITY COMPONENTS
Engine
Hydraulic pumps
Hydraulic controls
Drive motors
MACHINE FEATURES
Axial piston pumps and motors
Anti-vibration steel reinforced tracks

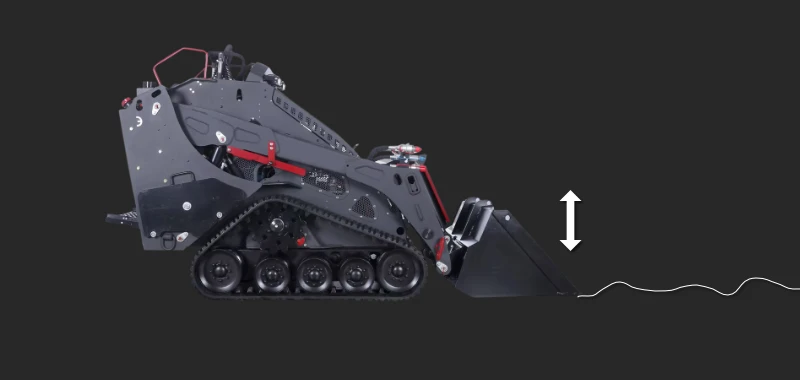

Arm float function
Quality powder coat paint

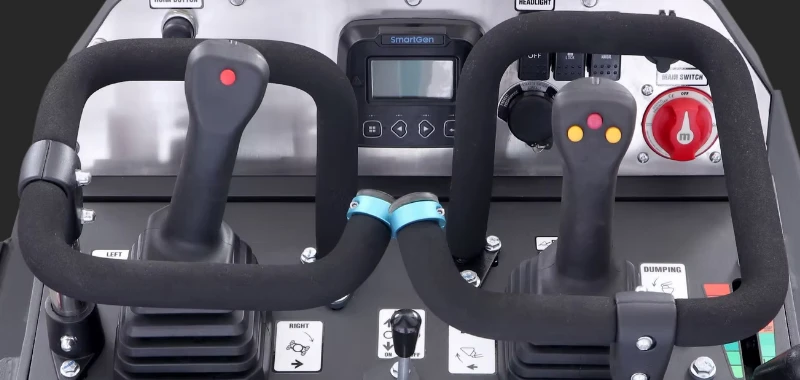

Joystick controls
Parking break

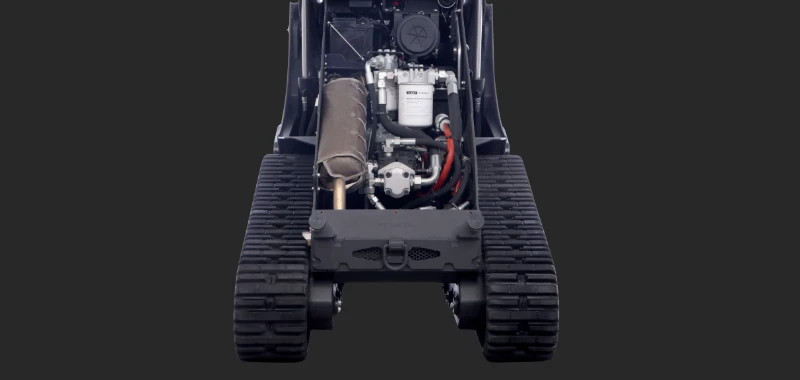

Easy access maintenance

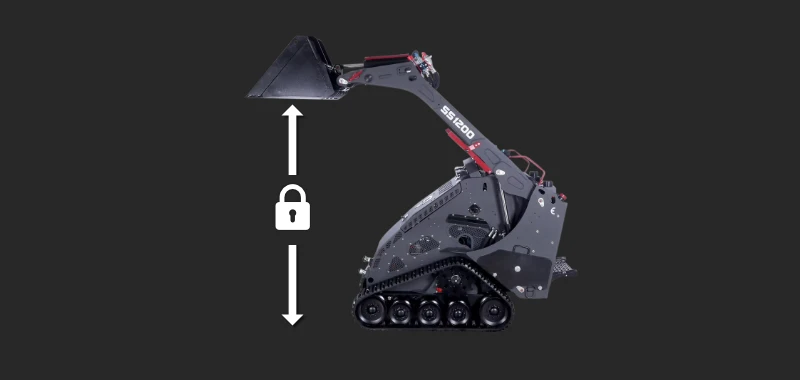

Secure arm lock
Emergency stop function
Multiple secure anchor points
LED lights

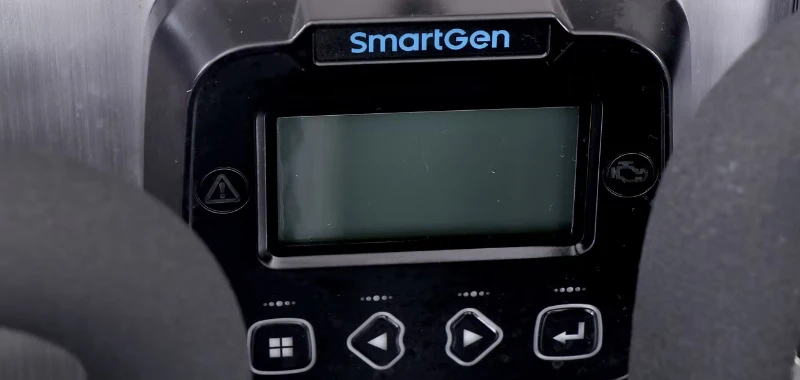

LCD screen

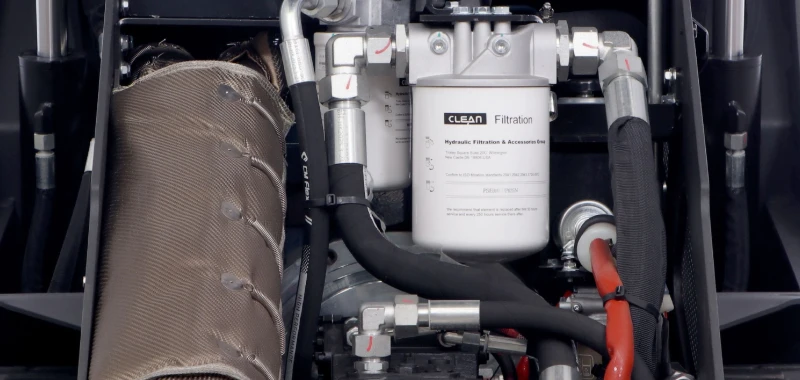

High quality filters and thick hydraulic hoses

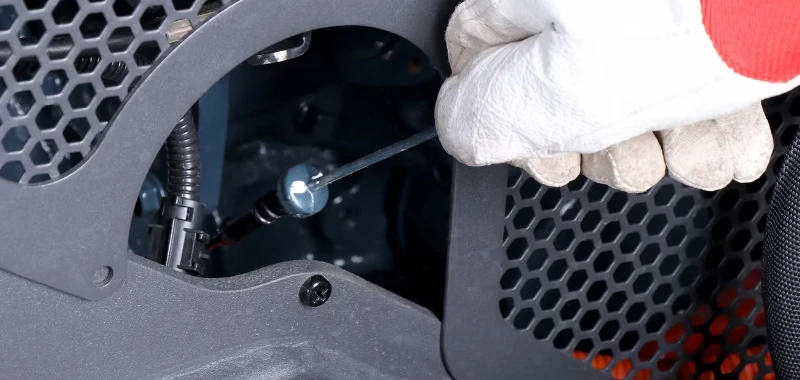

Removable side panels
Quick release couplers

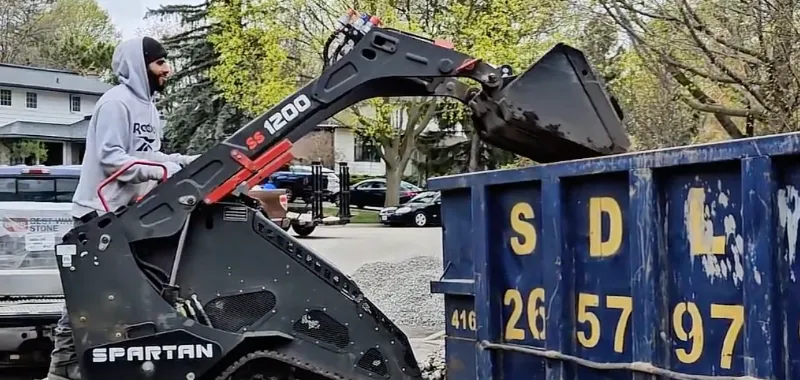

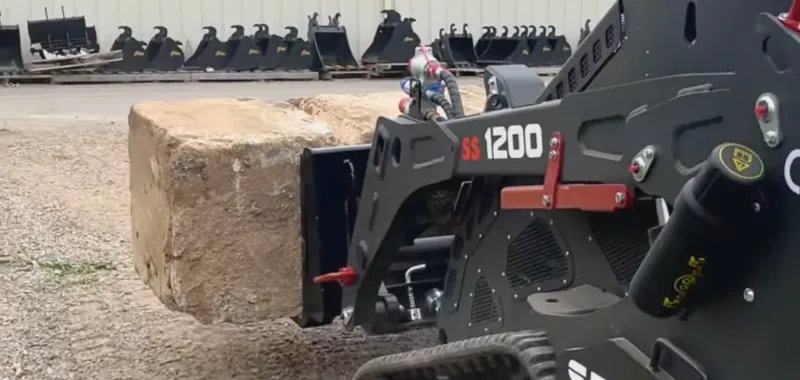

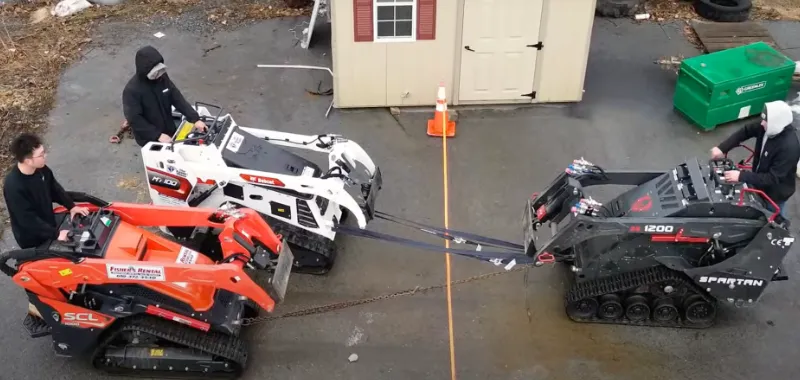

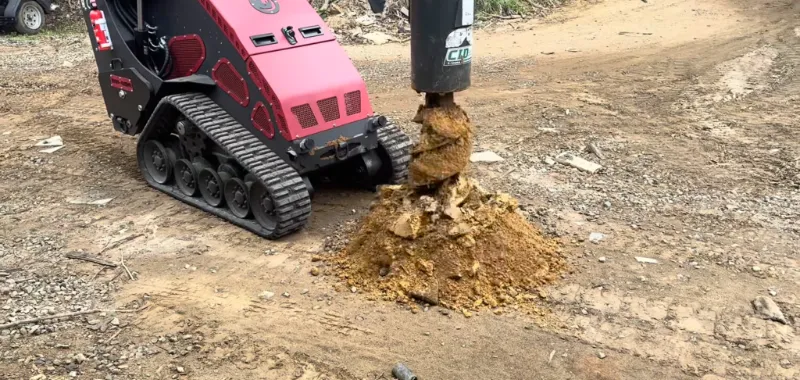

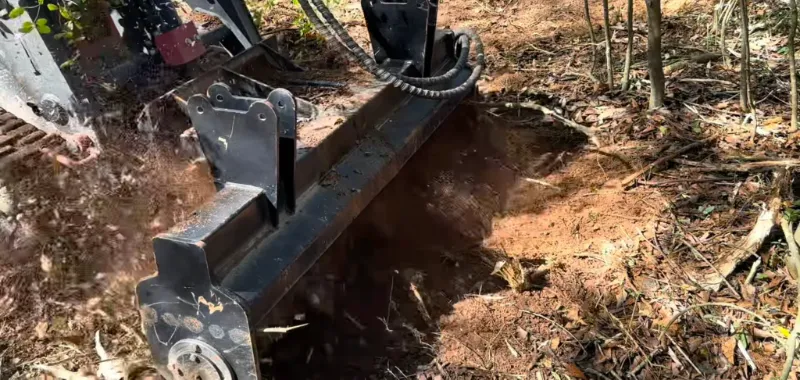

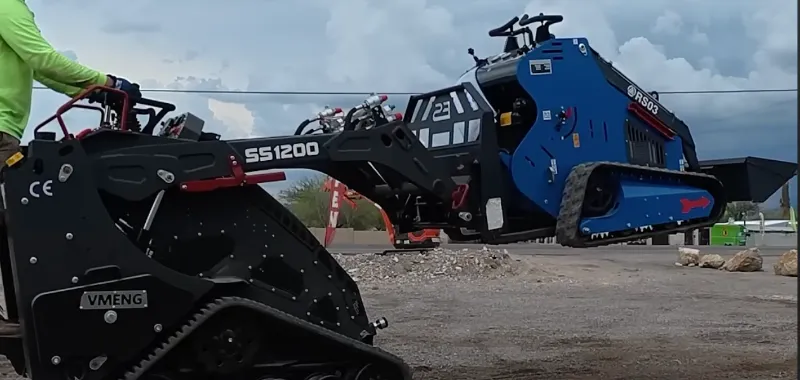

VIDEO SHOWCASE

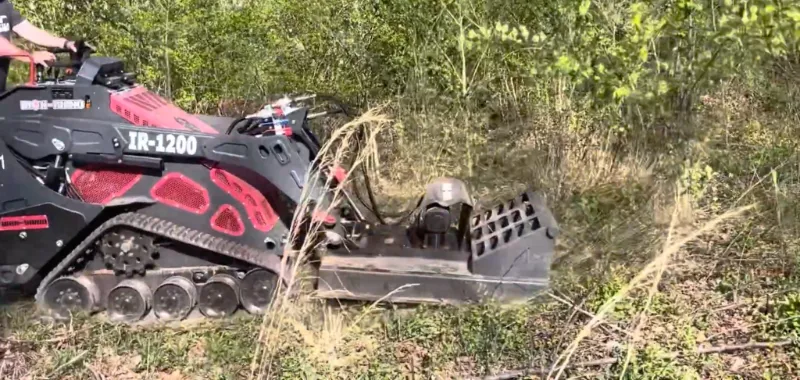

* Iron Rhino machines seen in some videos below are manufactured by Vmeng. IR-1200 (Spartan SS1200) is only available in USA market for 31000$ + tax.
