VM SERIES

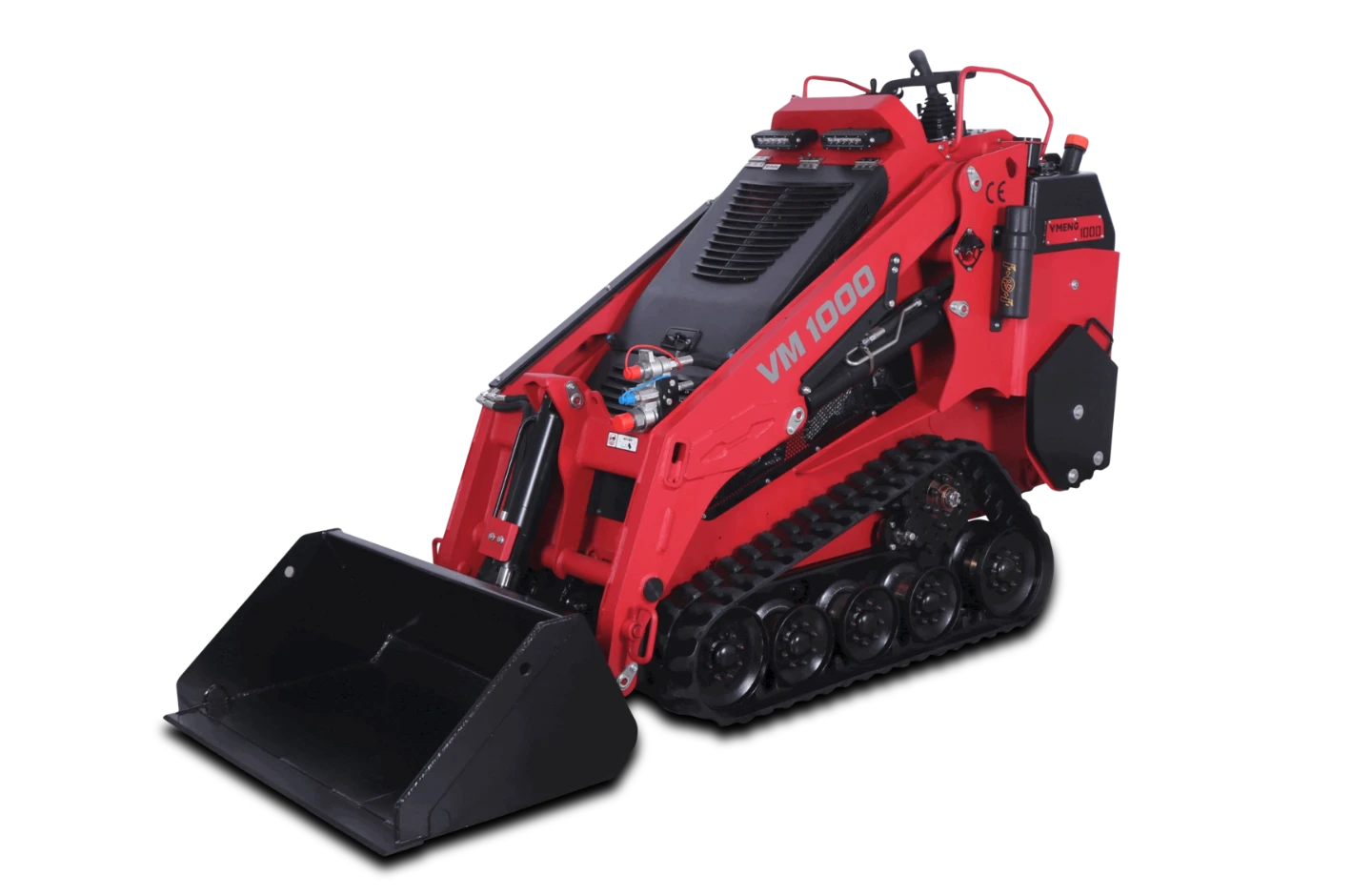

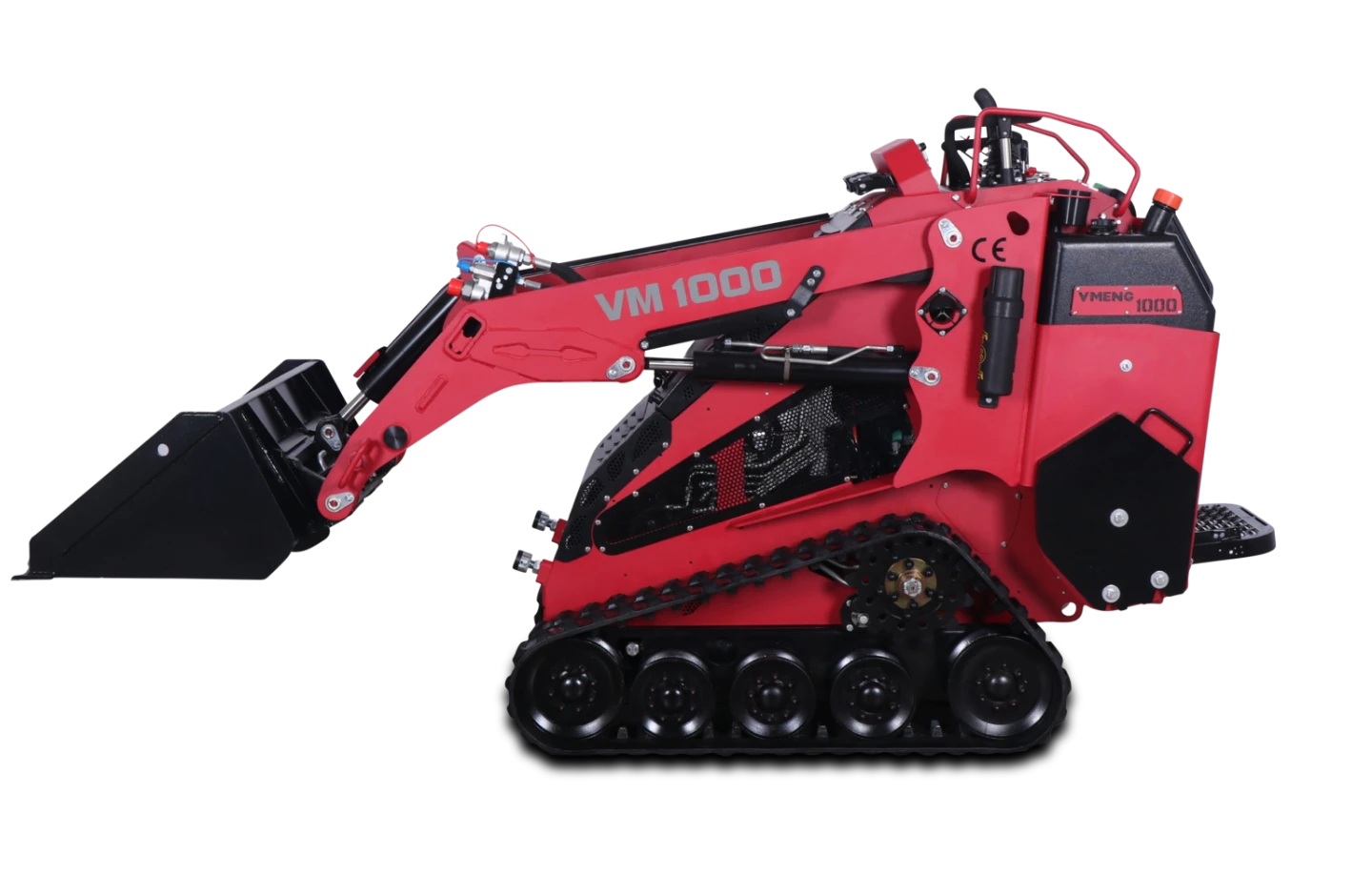

VM 1000PRO
15 500 € without VAT
18.5 kW
Engine power
48 L/min
Hydraulic flow
500 kg
Operating capacity
TECHNICAL SPECIFICATIONS
- Standard bucket included (98cm, 0.15m³)
- Bondioli & Pavesi axial piston pumps
- Poclain axial piston motors rated for 15000 hours (only in PRO)
- Parking break
- Counterweights
- Smooth operation joystick controls
- 200 mm multi-bar pattern steel reinforced tracks (only in PRO)
- Arm float function
- Secure arm lock
- Quick pressure relief connectors
- Emergency kill switch
- LED lights
- Secure anchor points
- Multifunction control valve (only in PRO)
- Fire extinguisher, cup holder, phone holder, charger
- CII (Common Interface Interface) heavy duty mounting plate
- Wide range of adapter attachments
- Includes toolbox, grease gun, set of spare filters
- 1 year parts and labour warranty
| VM 1000 PRO | |
|---|---|
| Engine model | Kubota D1105 |
| Engine power | 24.8HP (18.5kW) @ 3000 rpm |
| Maximum torque | 71.5 Nm @ 2200 rpm |
| Maximum speed | 7.24 km/h |
| Machine weight | 1515 kg |
| Operating capacity | 500 kg |
| Maximum lift weight | 1426 kg |
| Dimensions without bucket LxWxH | 2234 x 1029 x 1608 mm |
| Overall length with bucket | 2886 mm |
| Maximum lift height | 2150 mm |
| Maximum lift height at 45° tilt | 1587 mm |
| Hydraulic flow @ pressure | 48 L/min @ 20MPa |
| Track width | 200 mm |
| Fuel tank capacity | 35 L |
TOP QUALITY COMPONENTS
Engine
Hydraulic pumps
Hydraulic controls
Drive motors
MACHINE FEATURES
Axial piston pumps and motors
Anti-vibration steel reinforced tracks
Arm float function

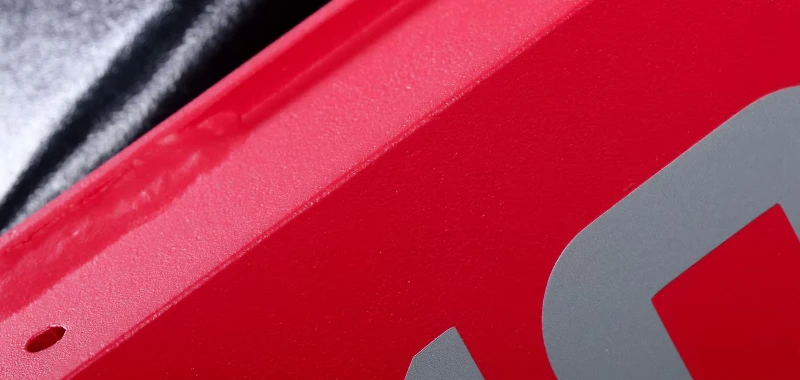

Quality powder coat paint

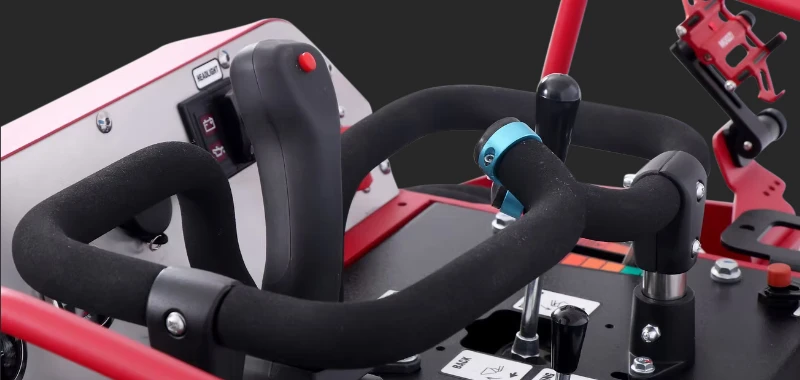

Joystick controls

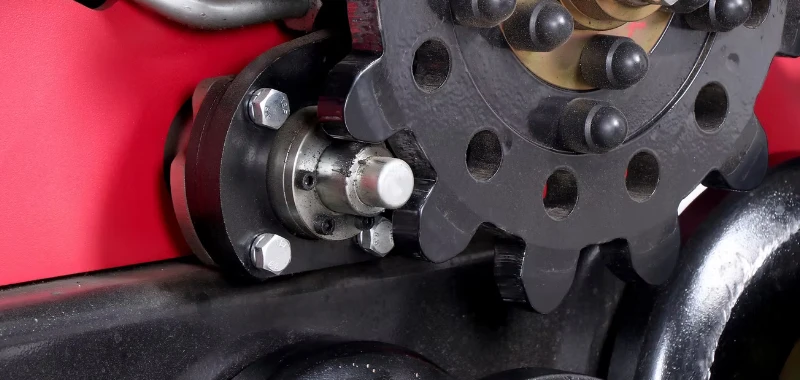

Parking break

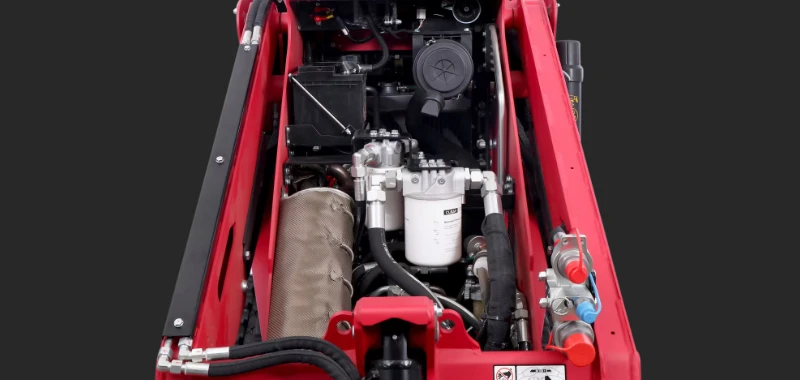

Easy access maintenance

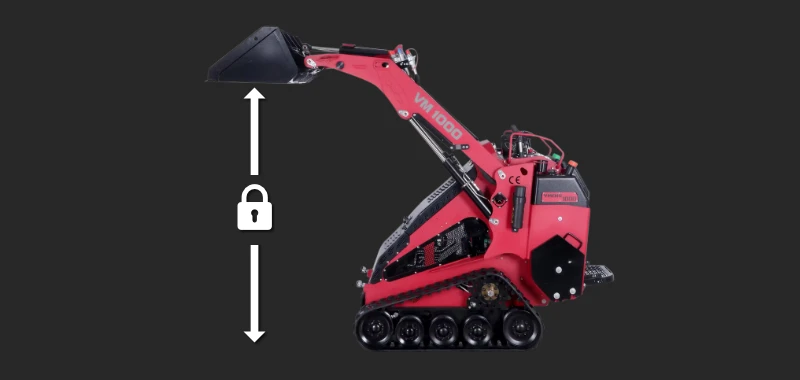

Secure arm lock

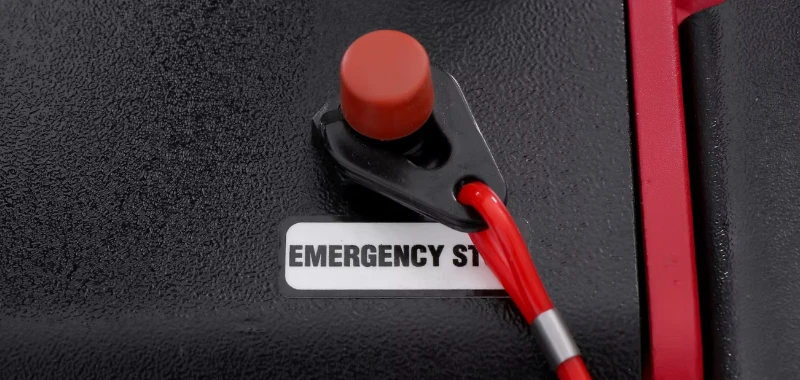

Emergency stop function
Multiple secure anchor points

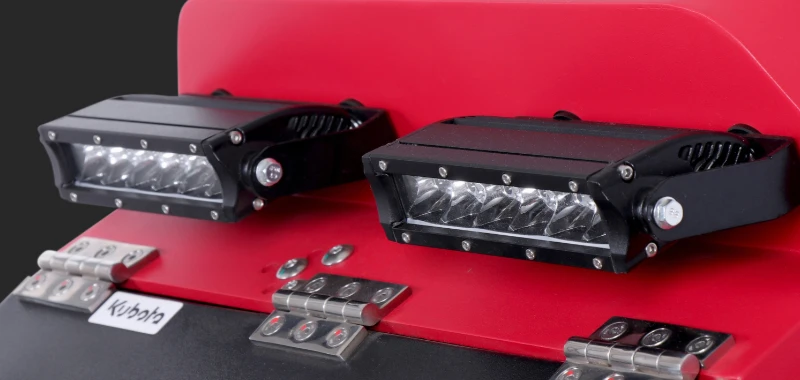

LED lights

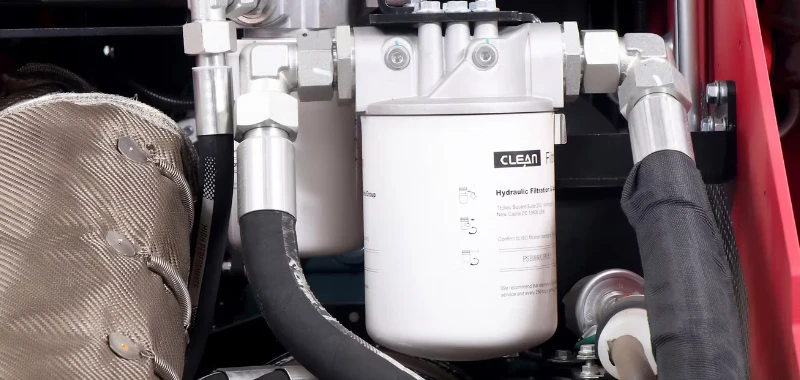

High quality filters and thick hydraulic hoses

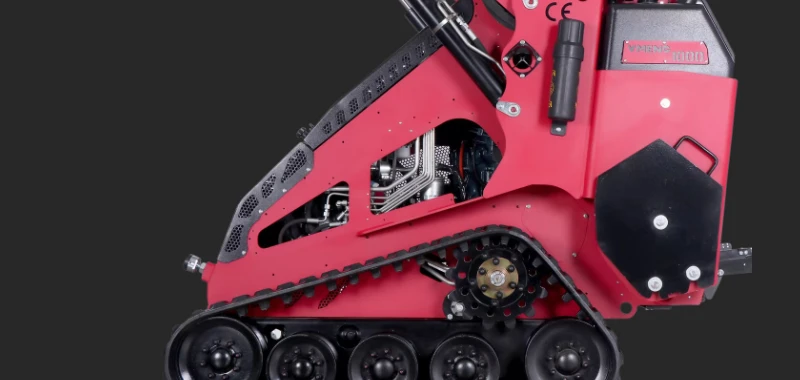

Removable side panels
Quick release couplers

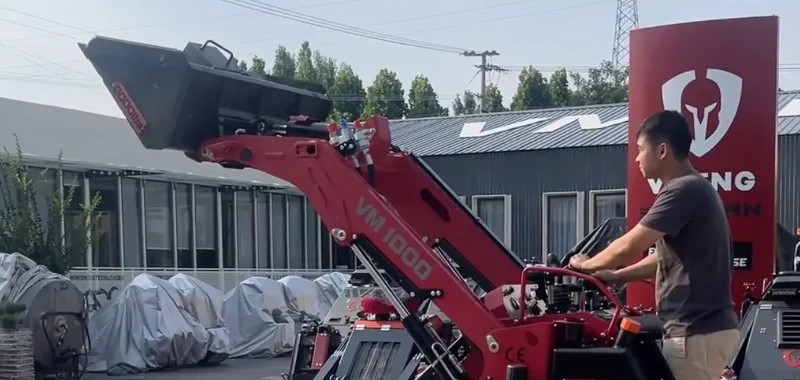

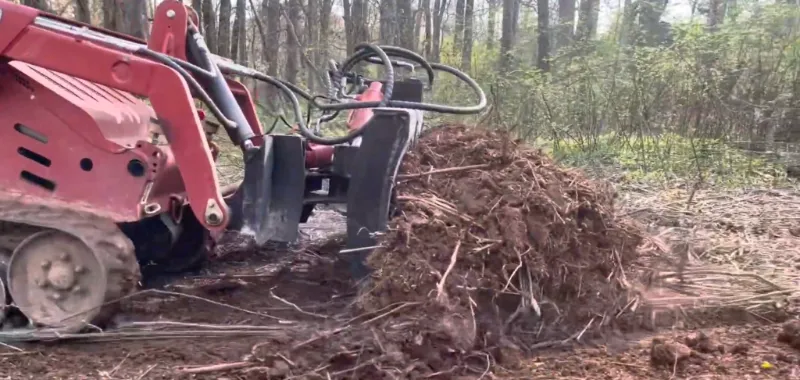

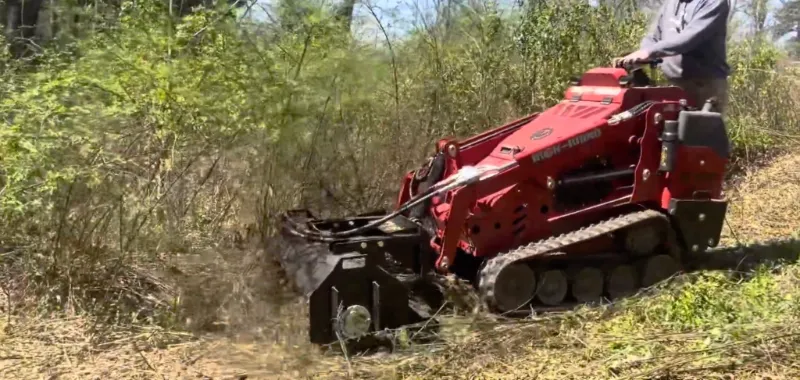

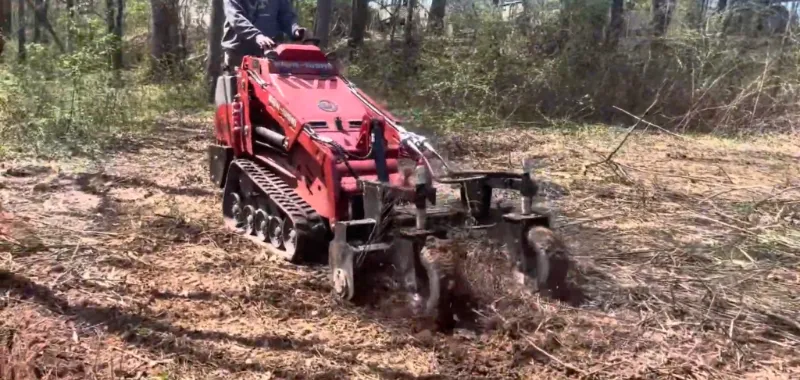

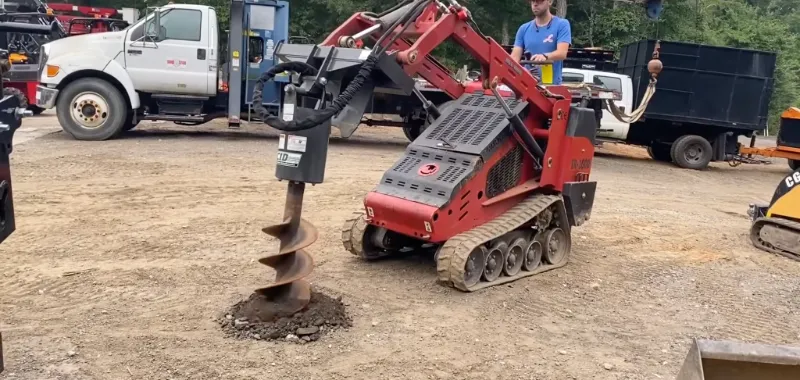

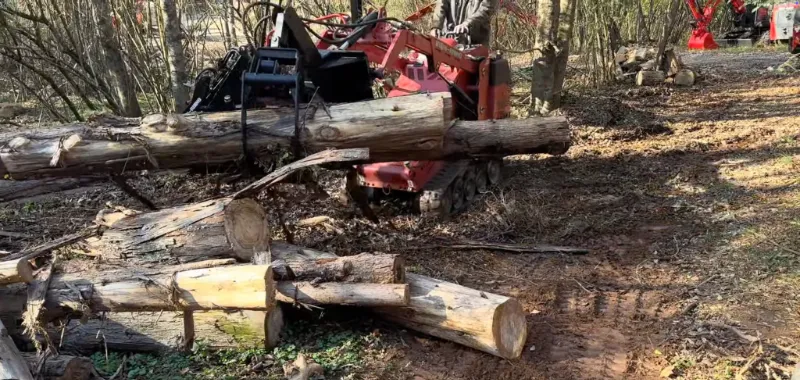

VIDEO SHOWCASE
* Iron Rhino machines seen in some videos below are manufactured by Vmeng. IR-1000PRO (VM1000 PRO) is only available in USA market for 26500$ + tax.
