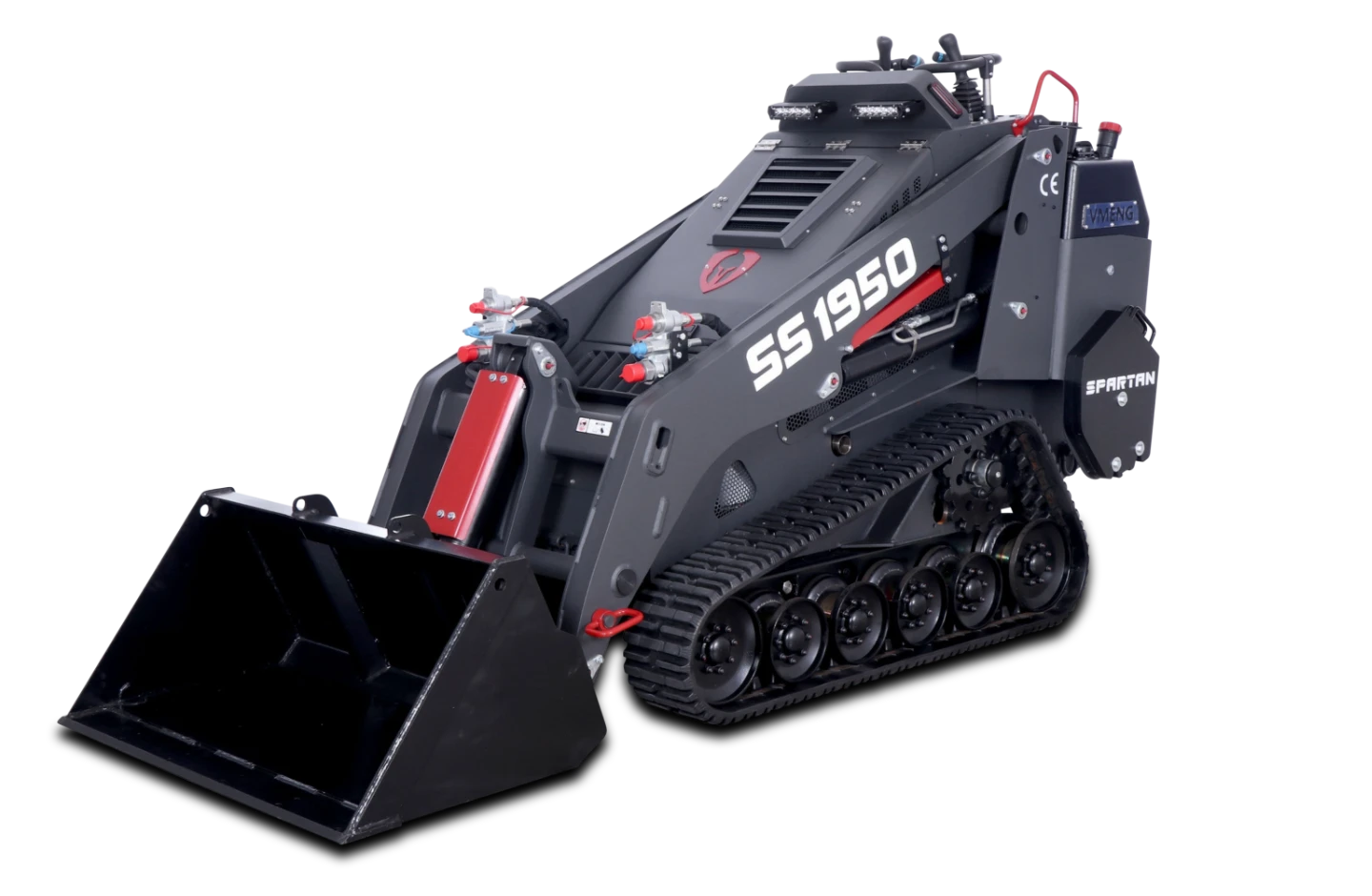

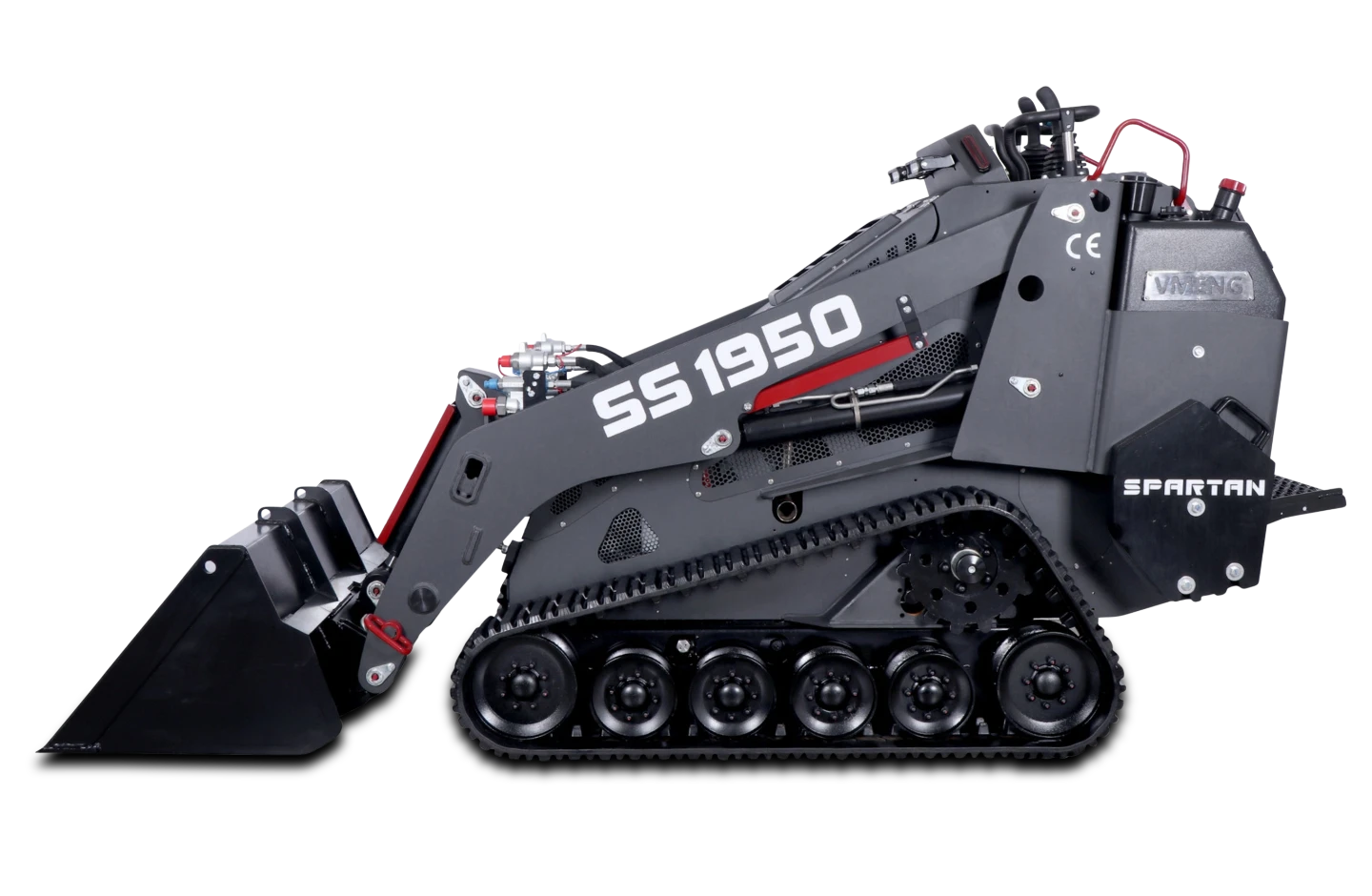

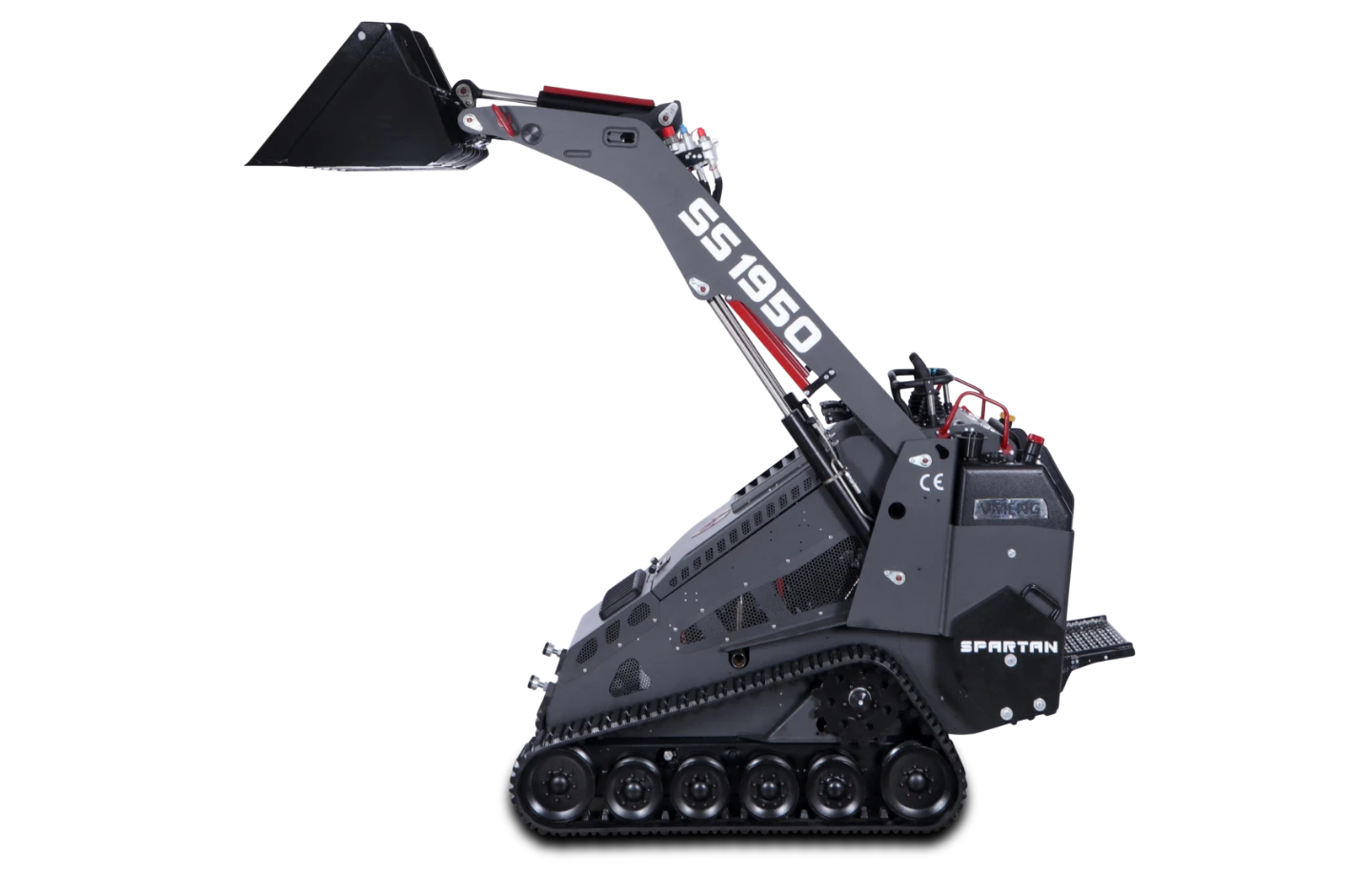

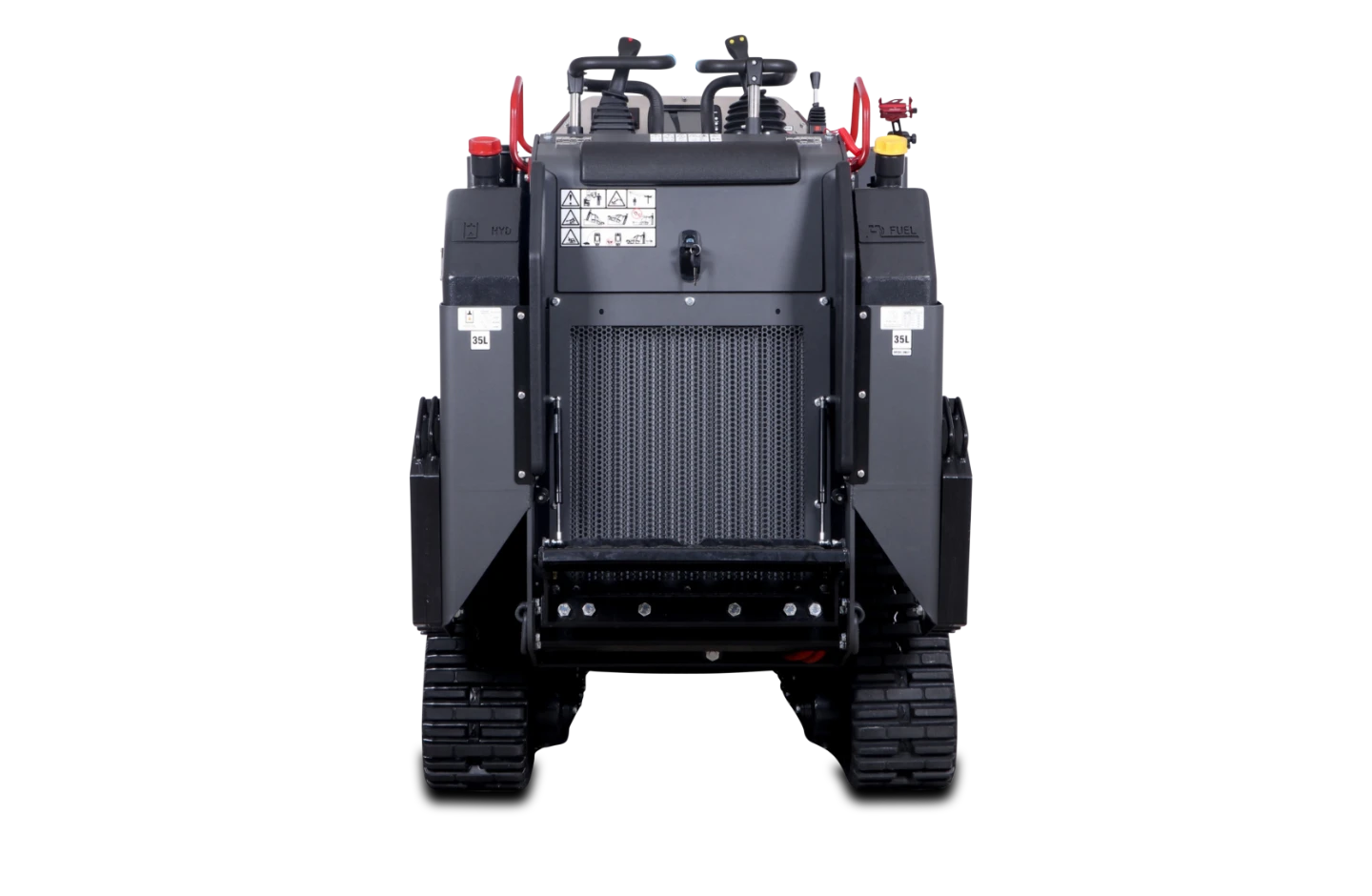

SPARTAN
SS 1950
29 000 € without VAT
35 670 € with VAT
36 kW
Engine power
80 L/min
Hydraulic flow
827 kg
Operating capacity
TECHNICAL SPECIFICATIONS
- Standard bucket included (119cm, 0.3m³)
- Bosch Rexroth axial piston pumps
- Poclain axial piston motors rated for 15000 hours
- Dual auxiliary connectors
- Parking break
- Counterweights
- Smooth operation joystick controls
- 230 mm multi-bar pattern steel reinforced tracks
- Arm float function
- Secure arm lock
- Quick pressure relief connectors
- Emergency kill switch
- LED lights
- LCD screen
- Secure anchor points
- Multifunction control valve
- Fire extinguisher, cup holder, phone holder, charger
- CII (Common Interface Interface) heavy duty mounting plate
- Wide range of adapter attachments
- Includes toolbox, grease gun, set of spare filters
- 1 year parts and labour warranty
| SS 1950 | |
|---|---|
| Engine model | Yanmar 4TNV86CT |
| Engine power | 48.3HP (36kW) @ 2400 rpm |
| Maximum torque | 176.6 Nm @ 1560 rpm |
| Maximum speed | 10.8 km/h |
| Machine weight | 2150 kg |
| Operating capacity | 827 kg |
| Maximum lift weight | 2364 kg |
| Dimensions without bucket LxWxH | 2370 x 1158 x 1573 mm |
| Overall length with bucket | 3290 mm |
| Maximum lift height | 2579 mm |
| Maximum lift height at 30° tilt | 2029 mm |
| Hydraulic flow @ pressure | 80 L/min @ 20MPa |
| Track width | 230 mm |
| Fuel tank capacity | 35 L |
TOP QUALITY COMPONENTS
Engine
Hydraulic pumps
Hydraulic controls
Drive motors
MACHINE FEATURES
Axial piston pumps and motors
Anti-vibration steel reinforced tracks

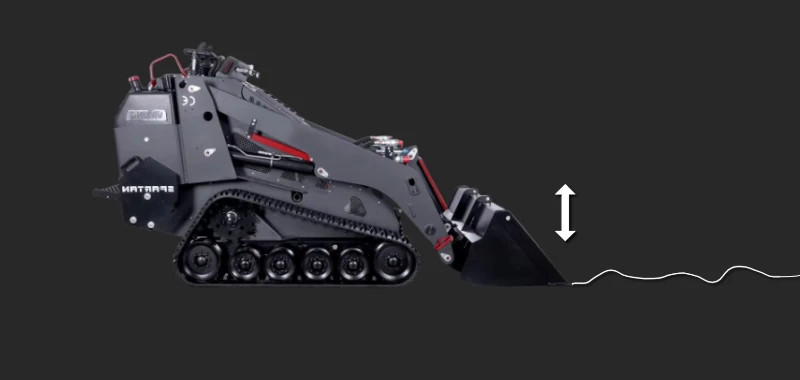

Arm float function

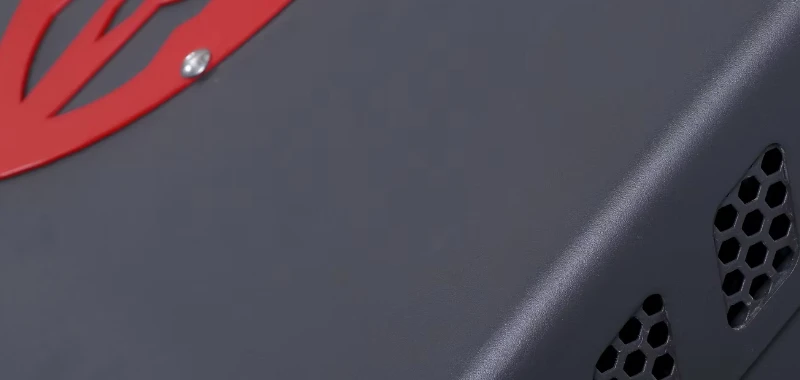

Quality powder coat paint

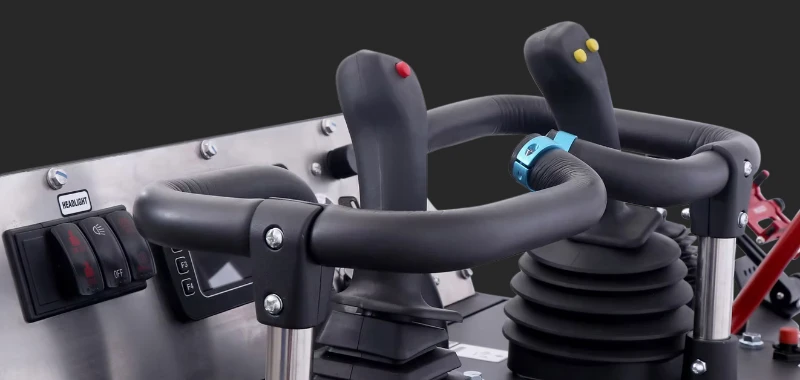

Joystick controls

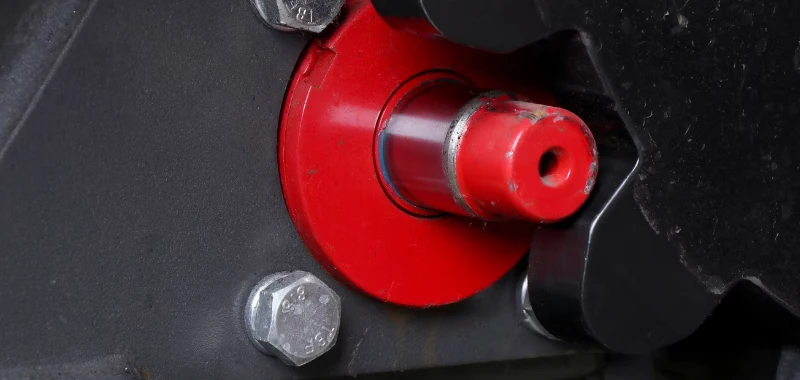

Parking break

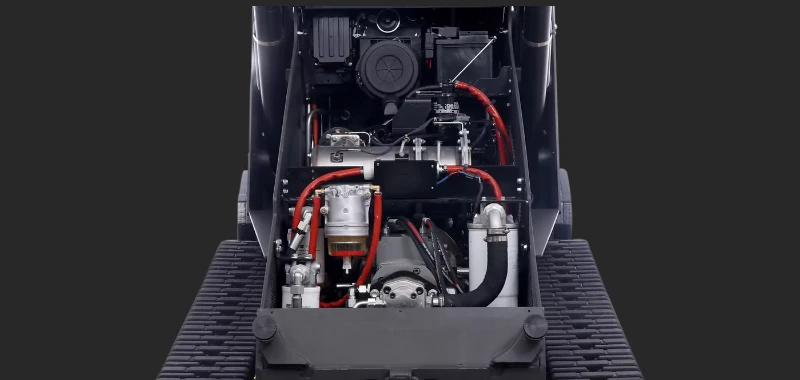

Easy access maintenance

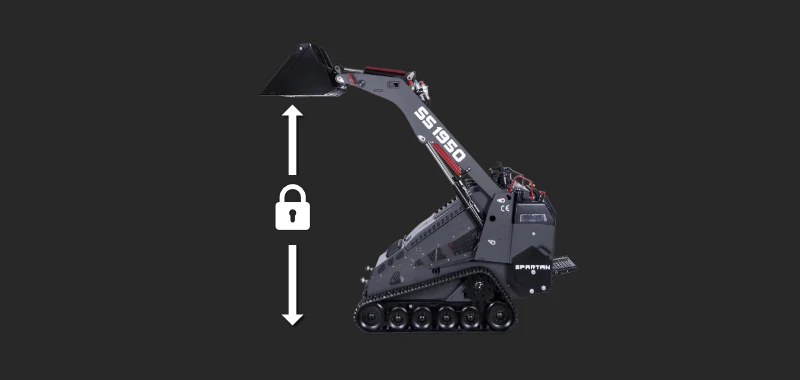

Secure arm lock

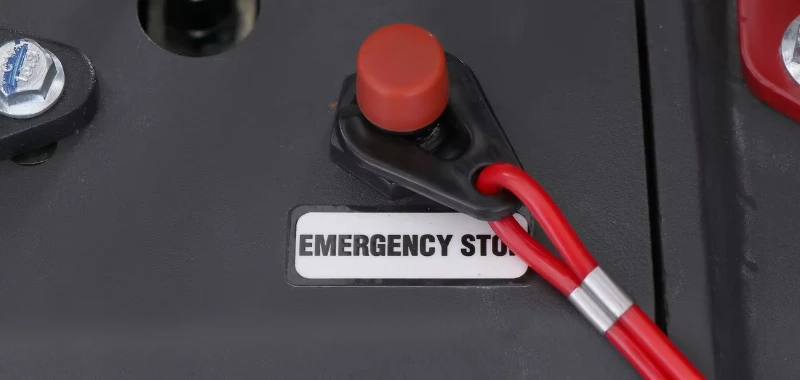

Emergency stop function

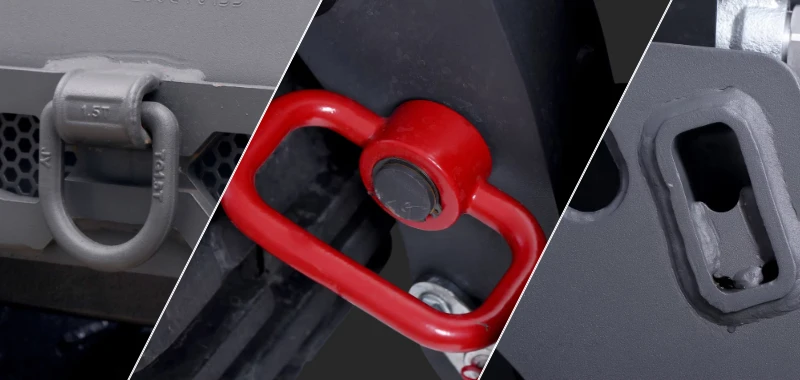

Multiple secure anchor points

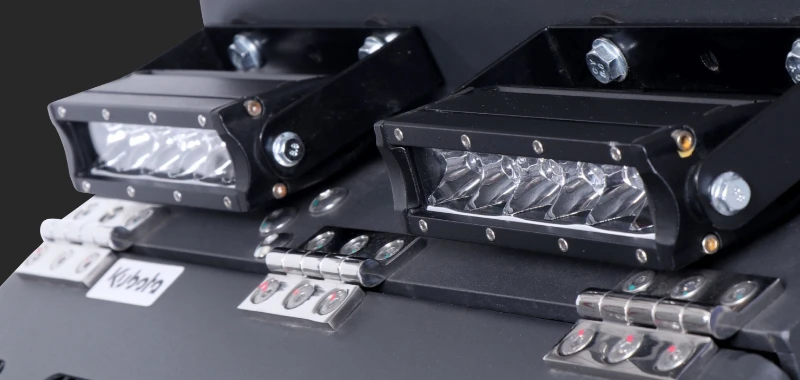

LED lights

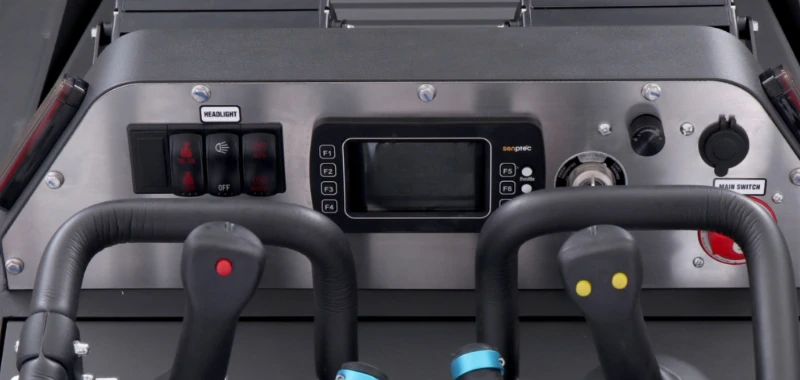

LCD screen

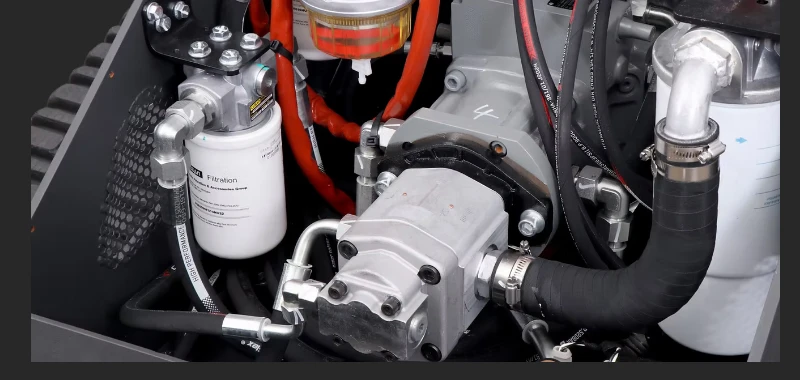

High quality filters and thick hydraulic hoses

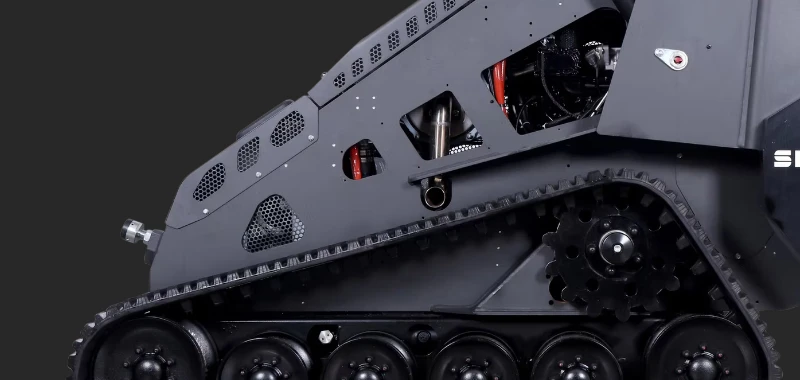

Removable side panels

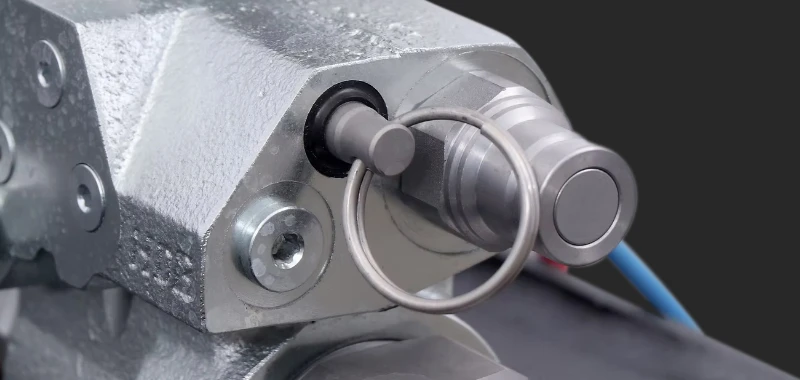

Quick release couplers

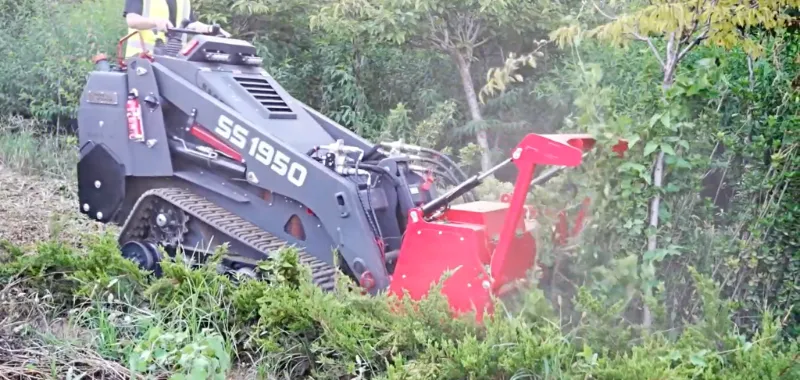

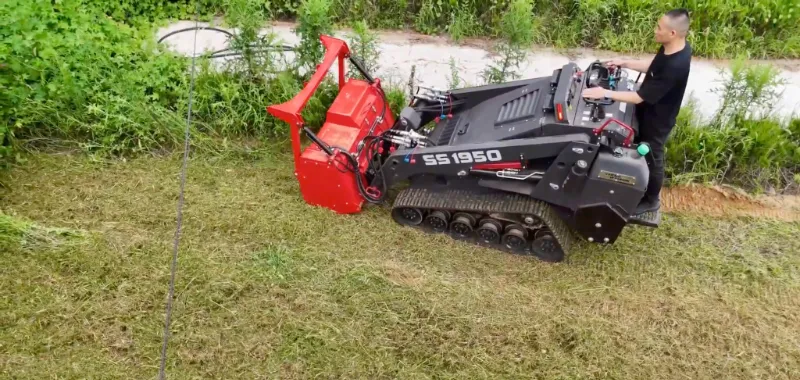

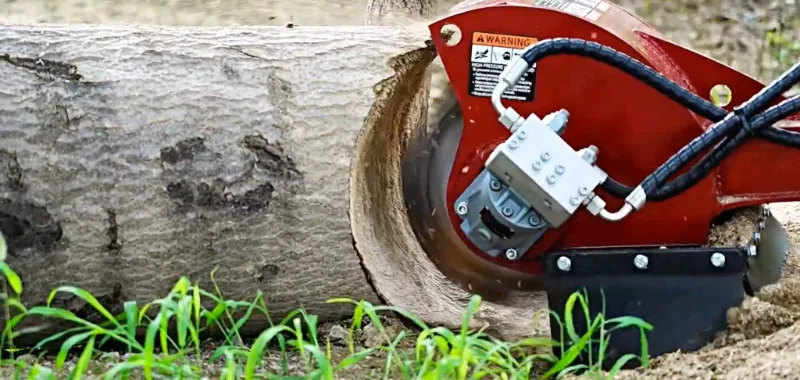

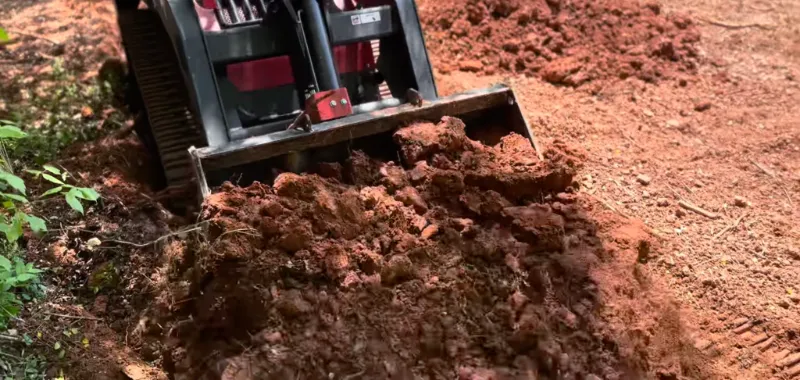

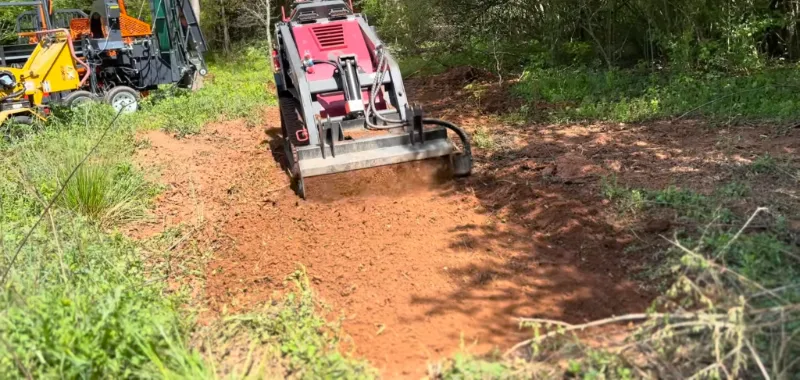

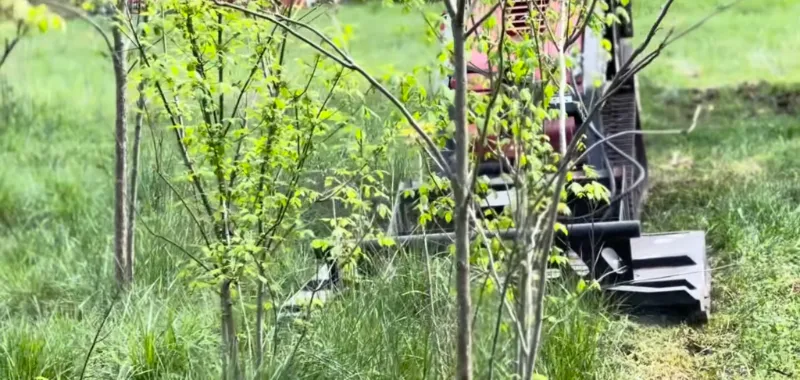

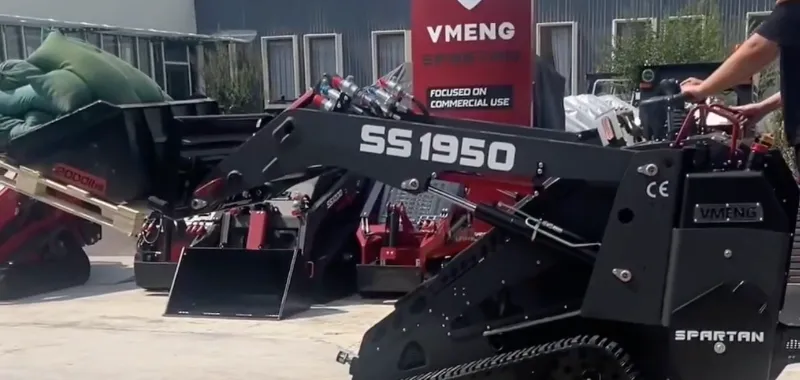

VIDEO SHOWCASE

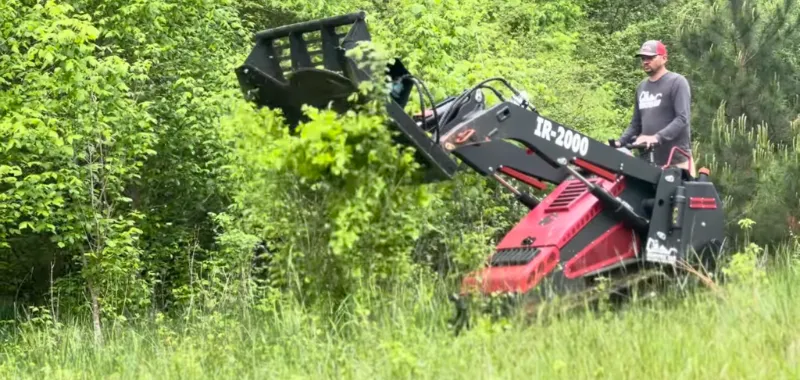

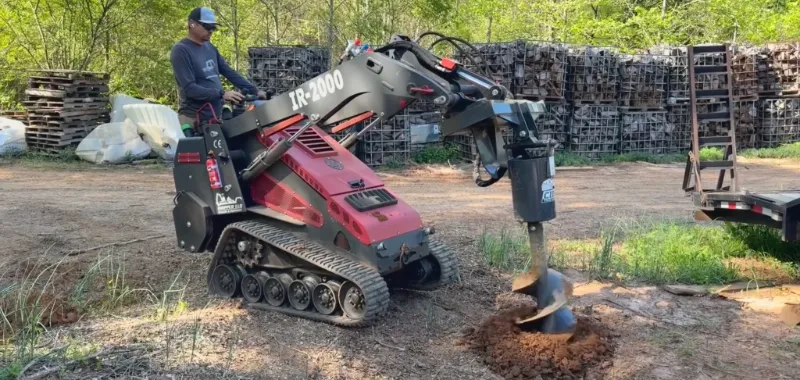

* Iron Rhino machines seen in some videos below are manufactured by Vmeng. IR-2000 (Spartan SS1950) is only available in USA market for 47000$ + tax.
